Die cast aluminum (more precisely, aluminum die casting) refers to aluminum parts manufactured through the die casting process, where molten aluminum alloy is forced under high pressure into a reusable steel mold (called a die).This produces precise, complex metal components with excellent surface finish, tight tolerances, and good mechanical properties. It's one of the most widely used metal forming methods for high-volume production, especially when lightweight yet strong parts are needed.

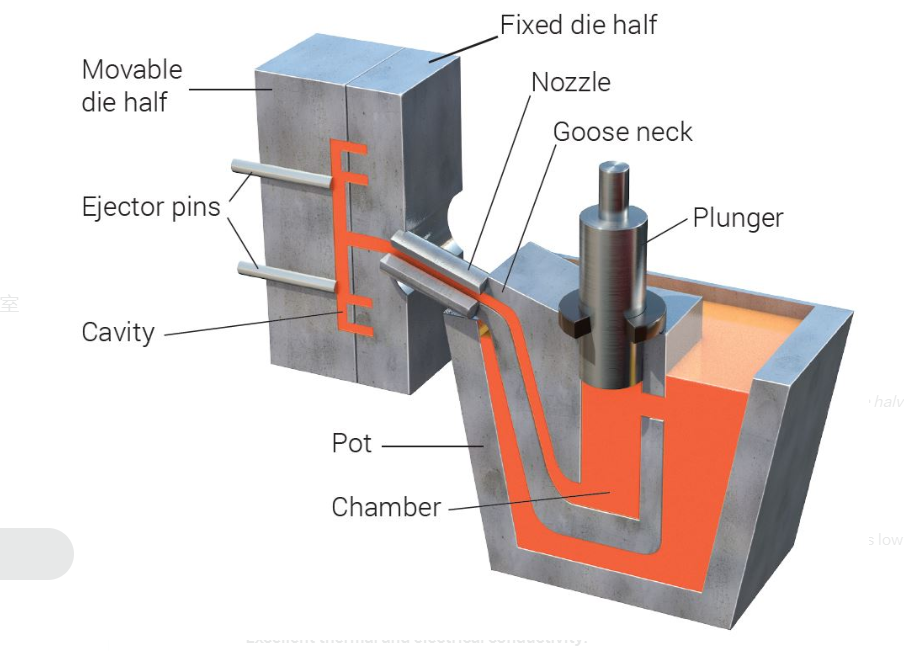

How the Process Works

1.Aluminum alloy ingots are melted at high temperatures (typically around 650–700°C / 1200–1290°F).

2.The molten aluminum is injected at high pressure (often 1,500–25,000 psi) into a precision-machined steel die cavity.

3.The metal rapidly cools and solidifies in the die (usually in seconds).

4.The die opens, and the cast part is ejected (often with ejector pins).

5.The die is reused for thousands or even millions of cycles.

The high pressure allows the molten metal to fill intricate details, thin walls, and complex geometries that would be difficult or impossible with other casting methods like sand casting.

Key Advantages of Aluminum Die Casting

1.Lightweight — Aluminum has an excellent strength-to-weight ratio.

2.High dimensional accuracy and stability — Ideal for complex shapes and thin walls (as low as ~0.8–1 mm in many cases).

3.Good corrosion resistance — Especially with common alloys.

Excellent thermal and electrical conductivity.

4.Smooth surface finish — Often requires little to no additional machining.

5.Fast production — High-speed cycles enable very high volumes at low per-part cost.

6.Cost-effective for medium to high production runs.

Common Applications

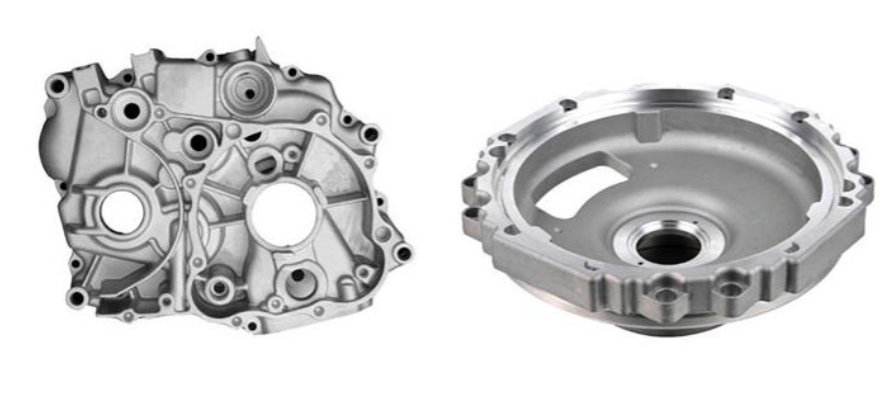

1.Aluminum die cast parts appear in countless everyday and industrial products, including:Automotive components (engine blocks, transmission housings, brackets, wheels)

2.Electronics housings and heat sinks

3.Power tool bodies

4.Aerospace and structural parts

5.Consumer goods (e.g., appliance parts, lighting fixtures)

Quick Note on Terminology

1.Die cast aluminum" specifically means parts made via high-pressure die casting with aluminum alloys.

2.This differs from general "cast aluminum" (which can include sand casting, gravity die casting, permanent mold casting, etc., often with lower pressure and different characteristics).
