CNC prototyping is the process of using Computer Numerical Control (CNC) machinery to create a functional, high-precision physical model of a product from a digital CAD file.
Unlike 3D printing (which adds material layer-by-layer), CNC is a subtractive manufacturing process. It starts with a solid block of material and "carves" it away using high-speed rotating tools.
1. How It Works
The transition from a 3D idea to a physical part involves three main digital stages:
1.CAD (Computer-Aided Design): You design the part in 3D software.
2.CAM (Computer-Aided Manufacturing): This software converts the 3D model into "G-code"—the language the machine speaks.
3.Machining: The CNC machine (Mill, Lathe, or Router) follows the G-code to cut the part out of a "blank" or "workpiece" of metal or plastic.
2. Why Choose CNC Over 3D Printing?
While 3D printing is often cheaper for "look-and-feel" models, CNC prototyping ispreferred for engineering-grade testing for several reasons:
1.Material Reality: You can machine a prototype out of the exact same material as thefinal production part (e.g., 6061 Aluminum, Stainless Steel, or PEEK plastic).
2.Precision: CNC can hold tolerances as tight as +0.025mm, which is essential forparts that must fit together or contain moving components.
3.Functional Testing: Because the parts are cut from solid blocks, they have the samestructural integrity and heat resistance as the final product. Surface Finish: CNC produces much smoother surfaces than most 3D printers, oftenrequiring zero "cleanup" to look professional.

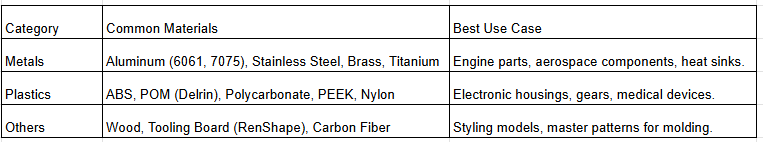

3. Common Materials Used
One of the biggest strengths of CNC prototyping is the vast material library:
4. When Should You Use It?
CNC prototyping is the "Gold Standard" for the Alpha and Beta stages of product development:
1.Form & Fit Testing: Checking if a circuit board fits inside an enclosure.
2.Functional Testing: Running an engine part to see if it withstands heat/friction.
3.Low-Volume Runs: If you only need 10–50 pieces, CNC is often cheaper and faster than building an injection mold.
