How to Leverage CNC Plastic Machining Skills for Flawless Prototype Success

Creating a flawless plastic prototype is about much more than loading a CAD file into a machine and pressing "start." Plastics behave entirely differently than metals during subtractive manufacturing. They have lower thermal conductivity, lower rigidity, and are highly susceptible to heat deformation, stress cracking, and distinct tool-wear patterns.

To get the most out of your rapid prototyping phase, engineers and product designers must apply specific design and manufacturing skills. By understanding how the machine interacts with different polymer structures, you can drastically reduce production times, lower tooling costs, and ensure your prototype perfectly simulates the final injection-molded product.

Here is how top-tier engineering teams apply CNC plastic machining skills to achieve prototyping success.

1. Master Material Selection Skills based on Machinability

The first skill in CNC plastic machining is matching the material to both the functional requirement and the physical machining process. Not all plastics cut the same way:

• POM (Delrin / Acetal): This is the gold standard for CNC machining. It is highly rigid, cuts cleanly without melting, and holds incredibly tight dimensional tolerances (often $\pm0.05 \text{ mm}$). It is ideal for mechanical gears, sliding components, and threaded parts.

• ABS and Polycarbonate (PC): Excellent for structural enclosures, but they require skilled temperature management. If the spindle speed is too high, these plastics will quickly melt and gum up the cutting tool.

• PEEK and PTFE (Teflon): High-performance plastics that require highly specialized tooling skills. PEEK is extremely abrasive and requires carbide or diamond-coated tools, while PTFE is highly ductile and requires razor-sharp cutting edges to prevent material tearing.

2. Apply Design for Manufacturability (DFM) Skills

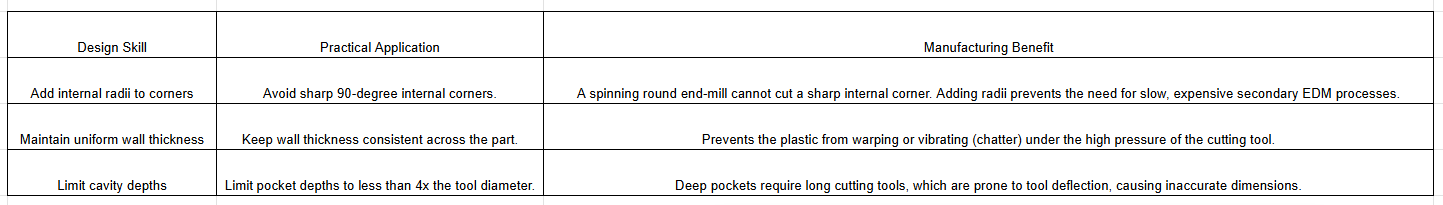

A skilled designer knows that optimizing a CAD model for the CNC machine drastically reduces machining cycles and scrap rates. Applying DFM skills to plastic parts involves three critical guidelines:

3. Skillful Heat Management and Tooling Strategies

The biggest enemy of CNC plastic machining is heat. Unlike aluminum or steel, which conduct heat away from the cutting zone, plastics act as thermal insulators. The heat generated by tool friction stays in the plastic, causing it to expand, warp, or melt.

Skilled CNC machinists manage this thermal challenge by:

• High Feed Rates & Lower Spindle Speeds: This ensures the cutting tool takes a deep, clean "bite" of the material and carries the heat away in the plastic chip, rather than rubbing and melting the surface.

• Specialized Plastic Routers: Using single-flute or double-flute end mills provides maximum clearance for lightweight plastic chips to escape quickly from the cutting zone.

• Correct Coolant Application: Standard cutting oils can chemically degrade certain plastics like Polycarbonate. Employing pressurized air blasts or water-soluble coolants keeps the tool cool without cracking the material.

4. Advanced Workholding Techniques

Because engineering plastics are softer and more flexible than metals, clamping them down tightly in a standard machine vise can easily crush, scratch, or permanently deform the raw block before the machining even begins.

Applying proper workholding skills is essential:

• Custom Soft Jaws: CNC-machined aluminum jaws contoured to perfectly cradle the plastic workpiece, distributing the clamping force evenly.

• Vacuum Tables: Using vacuum suction to hold down thin plastic sheets securely without applying any crushing side-pressure.

• Temporary Support Structures: Designing temporary tabs or sacrificial fixtures on the raw block that are cut away only in the final machining stage.

5. Leverage Secondary Surface Finishing Skills

A key skill in prototyping is knowing how to treat the part after it leaves the CNC machine. Machined plastic will naturally show faint tool paths. Depending on your presentation or testing needs, you can apply specific post-processing skills:

• Vapor Polishing: Used on Polycarbonate (PC) and Acrylic (PMMA) to melt the microscopic tool marks chemically, resulting in a glass-like, optically clear finish.

• Bead Blasting: Applies a uniform matte tactile texture that hides minor imperfections and prepares the surface for painting.

• Metal Inserts: Since machined plastic threads can strip under repeated assembly, skilled manufacturers will install brass heat-set threaded inserts to provide durable metal-to-metal fastening points.

Execute Flawless Plastic Prototypes with AluPrototype

Applying CNC plastic machining skills requires a deep understanding of polymer science, advanced CAM programming, and precision tooling setups. You do not have to master these manufacturing complexities alone.

At Shenzhen Alu Rapid Prototype Precision Co., Ltd, our engineering team brings decades of combined expertise in machining complex engineering plastics. From high-speed 5-axis milling to rigorous DFM analysis, we ensure your ABS, POM, or PEEK prototypes are machined to your exact specifications.

Stop worrying about melted edges, warped walls, or inaccurate dimensions. Let our experts handle the manufacturing so you can focus on the design.

Ready to start your next plastic prototype?Contact AluPrototype Today to submit your 3D CAD files for a free DFM review and an instant quote!
