Can You Anodize Die Cast Aluminum? The Ultimate Guide for Product Designers

If you are designing a product that requires both the high-volume efficiency of aluminum die casting and the durable, corrosion-resistant finish of anodizing, you have likely run into a common industry debate: Can you actually anodize die cast aluminum?

The short answer is yes, you can—but it is highly challenging and requires specialized expertise. Unlike extruded or CNC-machined aluminum (such as 6061 or 7075), die-cast aluminum presents unique metallurgical properties that make standard anodizing difficult. If done incorrectly, you risk ending up with patchy, dark, or structurally compromised parts.

At Alu Rapid Prototype, we specialize in helping engineers bridge the gap between complex manufacturing and premium surface finishing. Below, we break down the science of anodizing die castings, the challenges involved, and how to get the best results for your next project.

Why Anodizing Die Cast Aluminum is Challenging

To understand why anodizing cast aluminum is difficult, we have to look at the chemistry of the metal and the casting process itself.

Anodizing is an electrochemical process that converts the metal surface into a decorative, durable, anodic oxide finish. The formula for this protective barrier is aluminum oxide:

For a clean, uniform oxide layer to form, the acid bath requires a highly pure, homogeneous aluminum surface. Die casting alloys, however, are far from pure.

1. High Silicon Content

To flow smoothly into complex molds and prevent hot cracking, die casting alloys require high fluidity. This is achieved by adding silicon ($Si$), typically between 8% and 12% (as seen in common alloys like A380 and ADC12).

• The Problem: Silicon does not anodize. During the acid etching phase, the aluminum is eaten away, leaving behind a soot-like residue of silicon on the surface. This results in a dark gray, patchy, or black cosmetic finish.

2. Surface Porosity and Gas Traps

The high-pressure injection of molten metal into cold steel dies inevitably traps tiny pockets of air and gas, creating micro-porosity.

• The Problem: When the part is submerged in the sulfuric acid anodizing bath, the acid gets trapped in these micro-pores. During the sealing or drying phase, this trapped acid can "bleed out," damaging the finish and creating corrosive spots.

3. Surface Segregation and Flow Marks

As molten aluminum cools rapidly against the mold walls, the outer "skin" of the cast part often ends up with a different chemical composition than the core, frequently showing flow lines and swirling patterns. Anodizing highlights these physical and chemical variations, making them highly visible.

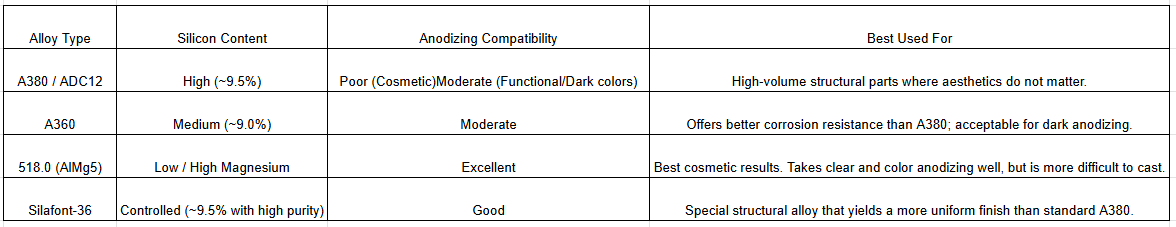

Best Aluminum Alloys for Die Cast Anodizing

If your project demands an anodized finish, choosing the right alloy during the design phase is critical.

Pro Tip: If your part requires a pristine, decorative colored finish (like bright red, blue, or clear silver), we highly recommend using CNC machining with 6061 aluminum instead of die casting. If die casting is a must, expect to stick to dark gray or black anodizing to mask cosmetic flaws.

How to Achieve the Best Anodizing Quality on Cast Parts

If anodizing is non-negotiable for your die-cast parts, success depends on strict process control. Here is how we achieve optimal results at Alu Prototype:

• Optimize the Mold Design: Gating and venting must be meticulously engineered to minimize porosity, particularly on cosmetic surfaces.

• Avoid Aggressive Etching: Standard anodizing pre-treatment uses heavy alkaline etching. For die castings, we use a specialized, mild desmutting acid step to prevent exposing subsurface silicon.

• Use Physical Pre-treatment: Bead blasting or sandblasting the parts before anodizing helps mask flow lines and provides a uniform, matte texture that hides minor surface defects.

• Stick to Type II (Cosmetic/Protective) Anodizing: Type III (Hardcoat) anodizing is incredibly difficult to perform on high-silicon cast alloys because the high voltage required can burn the parts around silicon clusters.

Practical Alternatives to Anodizing

If the aesthetic risks of anodizing cast aluminum are too high for your application, consider these highly reliable alternative finishes:

• Powder Coating: Offers excellent corrosion resistance, unlimited color options, and easily hides surface porosity and flow lines.

• Electrophoretic Deposition (E-Coating): Great for complex geometries, providing a thin, highly uniform protective layer.

• Chromate Conversion Coating (Alodine): Excellent for corrosion protection and electrical conductivity without altering part dimensions or risking cosmetic patchiness.

Get Expert Manufacturing and Finishing Support

Successfully anodizing die-cast aluminum requires a deep understanding of both metallurgy and surface chemistry. At Alu Rapid Prototype, we don't just manufacture parts—we engineer solutions. Whether you need high-precision CNC machining, rapid tooling, or advanced die casting with specialized surface finishes, our team is here to guide you from prototype to production.

Ready to start your next project? Get a rapid quote today at www.aluprototype.com and let our engineers optimize your design for manufacturing success.
