At Shenzhen Alu Rapid Prototype Precision Co., Ltd, we don't just make parts; we build functional assemblies. This recent project features a robust Connector Bracket Assembly that required a precise mix of fabrication and CNC machining.

Material Selection for Durability:

To ensure this bracket could handle industrial-grade stress, we used a strategic material combination:

The Connector Core (304 Stainless Steel): The central shaft is CNC-machined from 304 stainless steel, ensuring the connection points remain corrosion-free and dimensionally stable.

The Mounting Bracket (Carbon Steel): The outer U-frame is fabricated from heavy-gauge carbon steel, providing the structural rigidness needed for secure mounting.

Manufacturing Highlights:

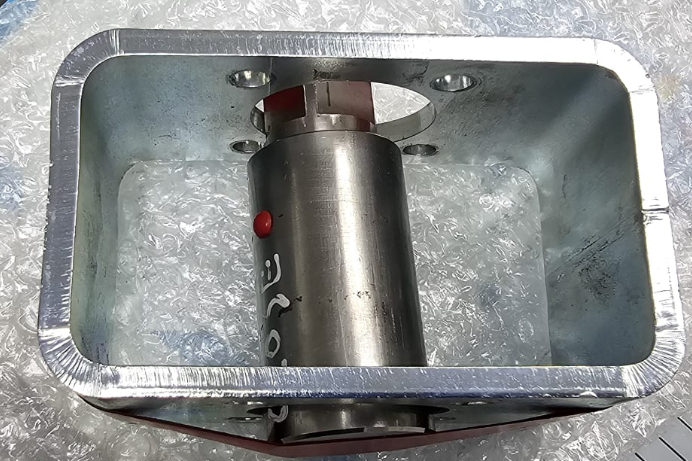

Tight Tolerance Fit: The bore in the carbon steel bracket had to perfectly align with the 304 stainless connector core. Our CNC team ensured a precise fit that allows for secure assembly without any mechanical play.

Structural Integrity: The bracket was precision-bent and welded. We paid close attention to the perpendicularity of the assembly to ensure it mounts perfectly to the client's equipment.

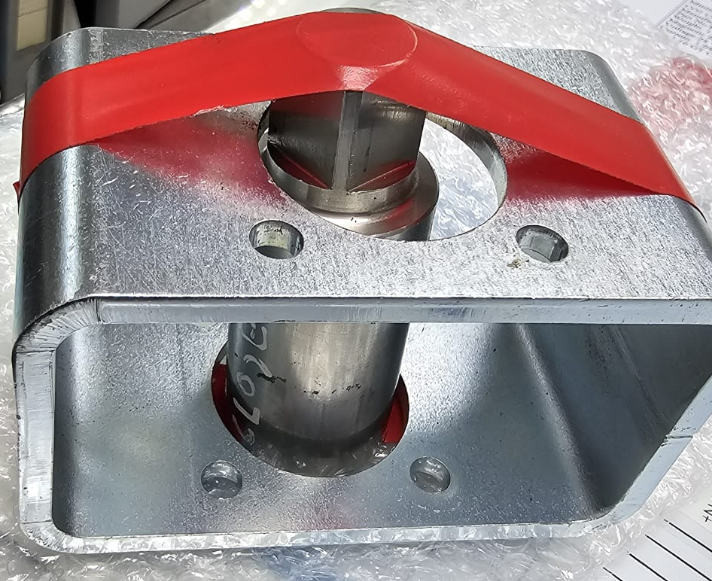

Proactive Protection: As seen in the photos, we use red industrial tape to protect the bracket's edges during shipping. At Shenzhen Alu Rapid Prototype Precision, we know that even a small scratch on a connector interface can cause installation issues, so we treat protection as a priority.

Conclusion:

This Connector Bracket Assembly demonstrates our ability to combine different materials and processes (CNC + Fabrication) under one roof in Shenzhen. If you have a complex bracket or connector project, our team is ready to deliver.
